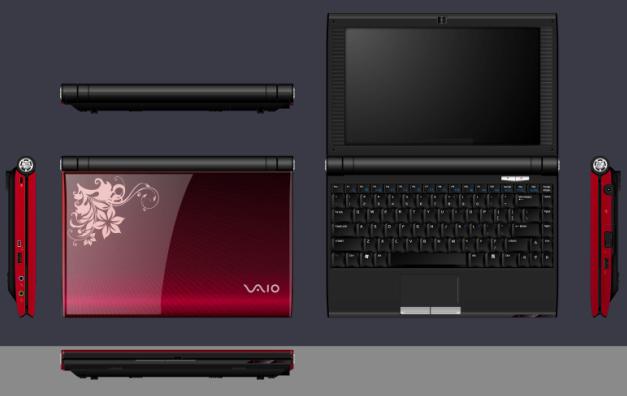

China laptop KK 13

Product Name: China laptop KK T13
Product ID: KK T13
MOQ: 100pcs
Product Introduce: 10.2 inch LCD, Intel Atom N270 1.6GHz

China Laptop Specification:

Processor packing : BGA-437 Pin,22 mm*22 mm
Support Processor: Mobile Diamondville-SC(Intel Atom N270 1.6GHz)
L2 Cache: 512 KB L2 Cache
FSB: Up to 533MHz
Preliminary TDP : 2.5W TDP
Socket type: SMT on board

Chipset: Intel 945GSE+82801GBM(ICH7)
System Memory: DDR2: 400/533 MHz,1 Channel So-DIMMs,Max. 2GB

Display: Panel size - 10″TFT LCD panel 1024*600 &1024*576 Backlight unit:LED

Graphic Controller - Integrated Gen3.5 GFX Core,support Linux, XP Home*
Graphic Memory - Shared system memory

HDD : 2.5″, 9.5mm SATA 5400/7200rpm
Move HDD: USB HDD(When shutdown) (Option)

Sound Codec chip - ALC269+AT93C46DN(AMP)
Internal Speaker - 2.1(BASS)HIGH QUALITY SPEAKERS (1.5W)
Internal Microphone - One
Sound Volume - By Function Key

FM: RDA5802 Frequency - modulation broadcast band 76~108MHz (Option)

Communications :
Wireless LAN - Intel WLAN abg 802.11 b/g
Modem - Azallia Interface 56K Fax/MODEM (Option)
LAN - “10/100Mbps Etherne -/- 10/100/1000Mbps Ethernett(Option)”
3G - Internal (Option)
CDMA card - Internal (Option)
Bluetooth Internal - (Option)

Input Device :
Keyboard - 254.75mm×96.4mm
UK/EU/JP/BZ - Standard Supported (82 key)
Hot Keys - 2 Multifunctional key
TouchPad - Glide,with 2 buttons

I/O Ports : 1 x Mic in / 1 x Headphone out/ 1 x RJ-11 / 1 x RJ-45/1 x Mini USB 2.0 Port / 3 x USB 2.0 Ports / 1 x DC-in/ 1 x VGA (15Pin)

Expansion Slots: Card Reader - 3 in 1 (/SD/MS/MMC)
Build-in Web Camera : 1.30M Pixels (Option )

Function Keys:
Fn+F1: Sleep
Fn+F2: Camera ON/OFF
Fn+F3: Dual Display
Fn+F4: TouchPAD ON/OF
Fn+F5: Speaker ON/OFF
Fn+F6: Speaker Volume / Down
Fn+F7: Speaker Volume / up
Fn+F8: LCD brightness / Down
Fn+F9: LCD brightness / UP

Security Features : Kensington Lock / Head portrait identify(Option) / TCM(Option)


OS:Win XP / Linux
